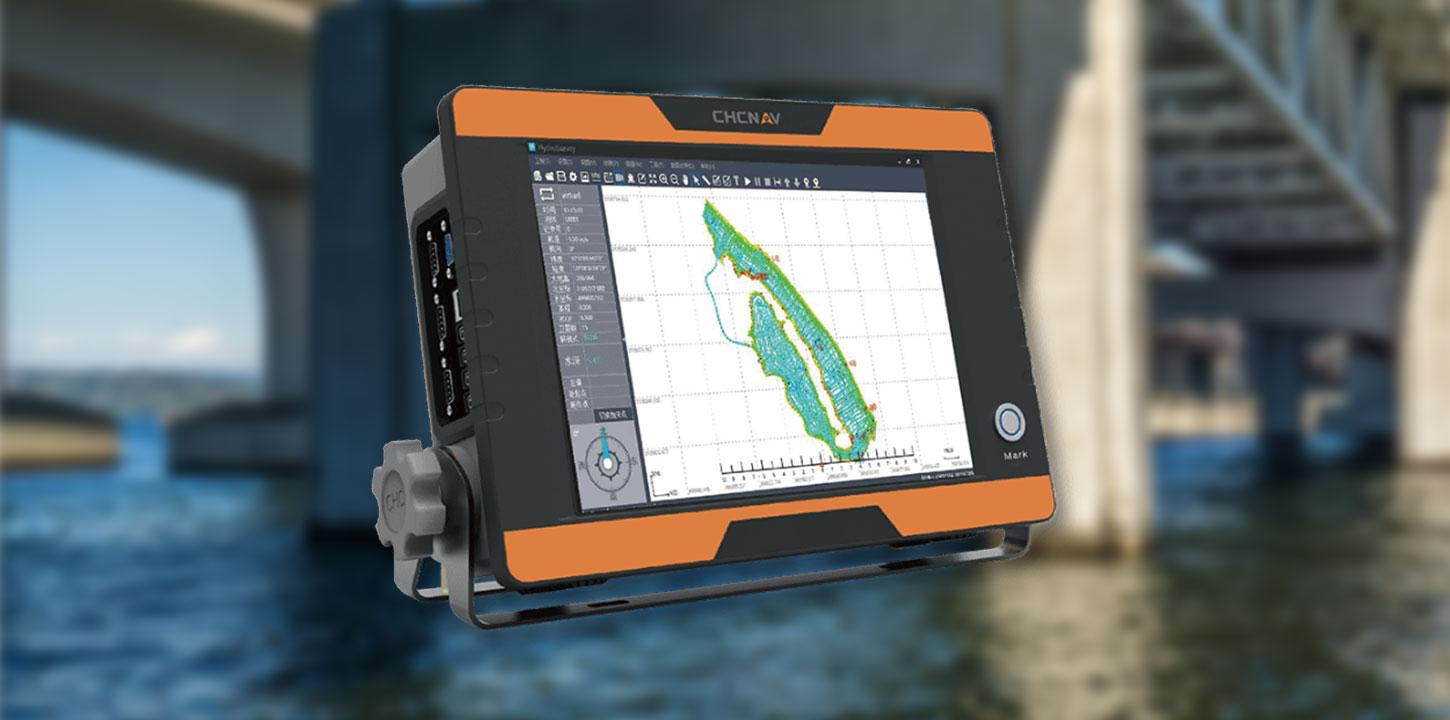

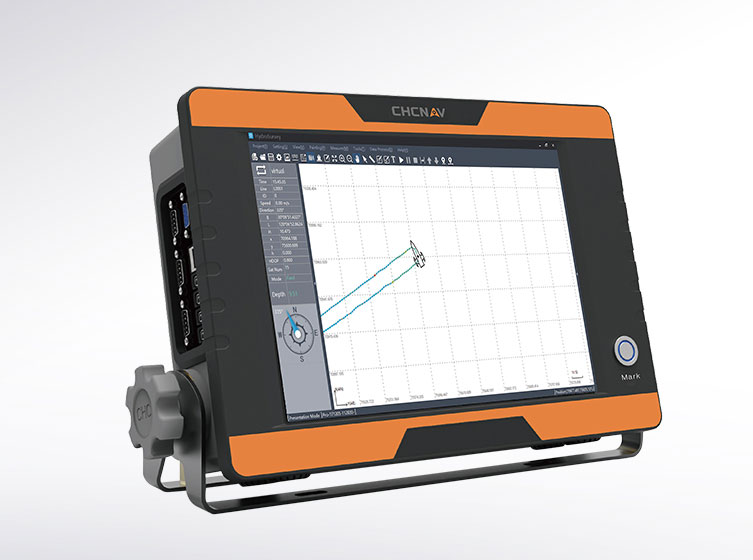

D390
Easy to operate with its feature-rich CHCNAV HydroSurvey software, the D390
clearly displays real-time depth readings and the survey project parameters on
its 12-inch HD touch screen. The standard serial interfaces for motion sensors
and GNSS differential receivers allow centimeter position precision.
The D390 is a cost-effective and rugged bathymetric solution
that uses an advanced 200 kHz transducer to match different hydrographic
conditions and significantly improve sounding performance and usability. The
7-degree beam angle provides focused directional and lateral resolution. In
addition, the water depth recording frequency can be as high as 60 Hz. Using
pulse width discrimination and automatic redundant data suppression enhance
data accuracy and reliability.
TURNKEY HYDROGRAPHIC SOLUTION
Cut down mission mobilization cost by 20%
The D390 is a fully integrated and affordable single
frequency echo sounder solution combined with the performance of an industrial
PC. Light, portable and with a rugged IP66 aluminum alloy enclosure, the D390
is easy to set up and to deploy in any remote location.
