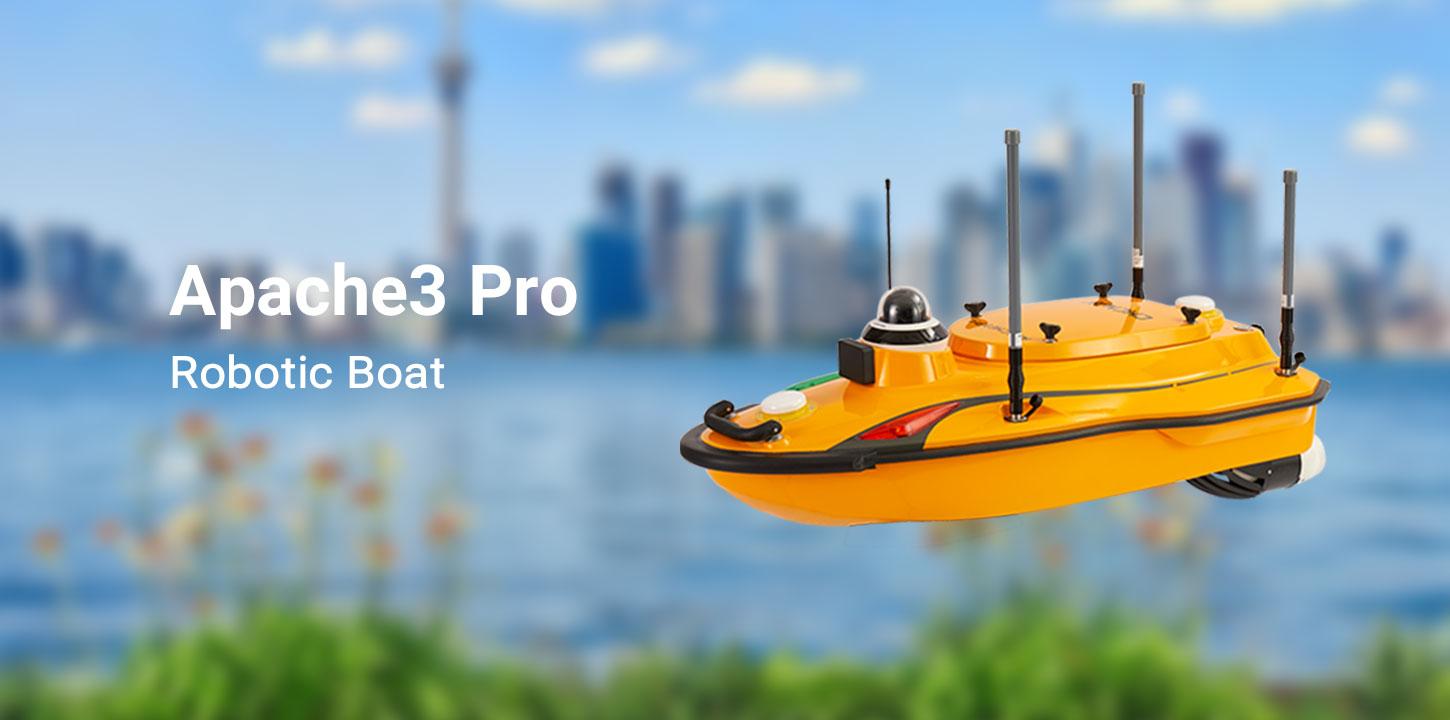

Apache3 Pro Robotic Boat

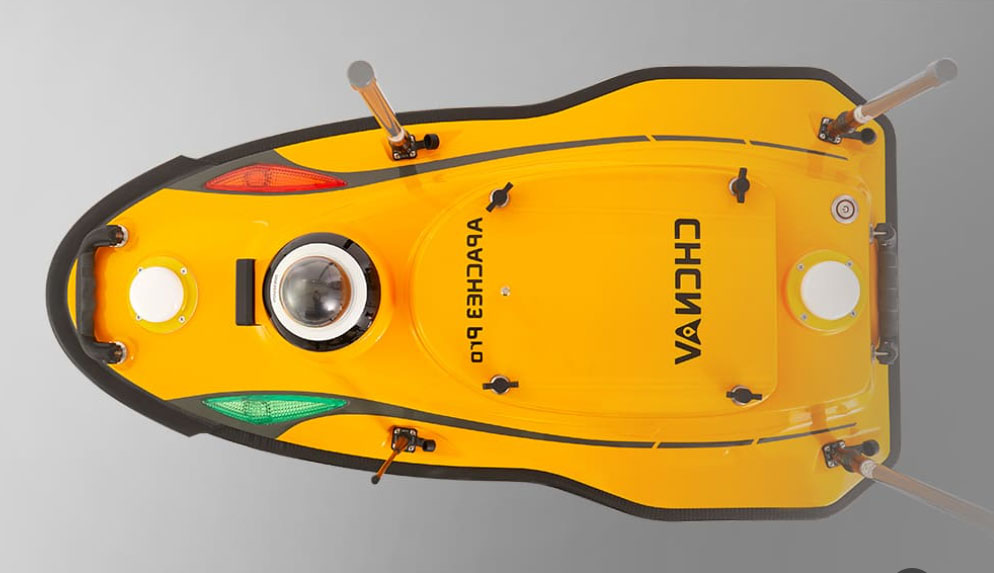

The APACHE 3 Pro is a compact, professional unmanned surface
vehicle (USV) designed for autonomous bathymetric surveys in shallow waters.
Its double-layer carbon fiber hull provides exceptional impact resistance and
unsinkability. The IP67 rating guarantees dust and water tightness, protecting
on-board components under all circumstances. The semi-recessed motor reduces
water resistance, improves endurance, and allows speeds up to 6 m/s.
The Apache3 Pro GNSS RTK + Inertial navigation system
ensures highly accurate measurements even when the GNSS signal is temporarily
interrupted, such as when navigating under a bridge. The built-in CHCNAV D270
echosounder provides the most reliable and accurate depth measurements at all
times.
In addition to the standard package that includes the USV,
single-beam echosounder and RTK GNSS/INS sensors, the Apache 3 Pro USV can be
equipped with water analysis probes to measure water quality parameters such as
pH, temperature, conductivity, dissolved oxygen and more. This data can be used
by environmental scientists and hydrographers.

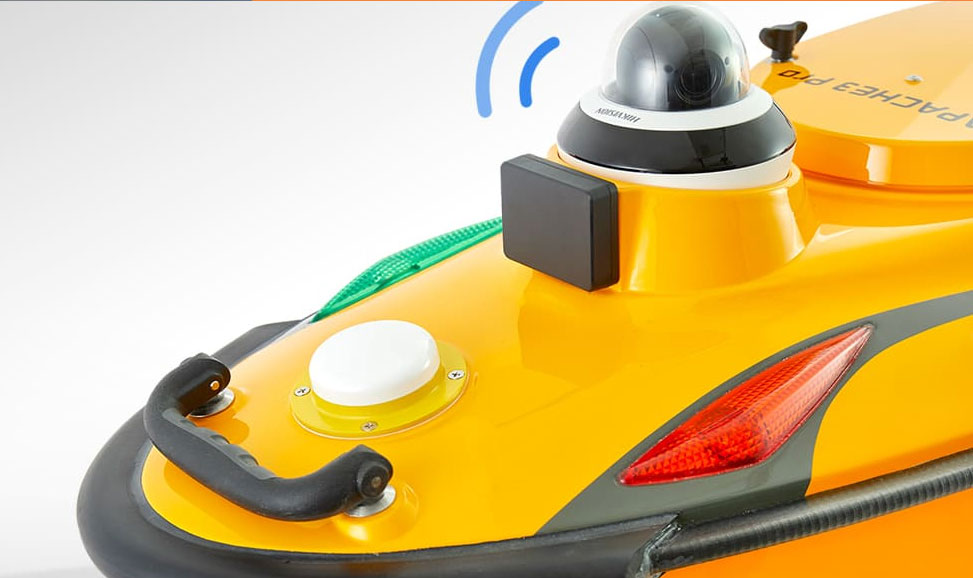

MILLIMETER-WAVE AUTOMATIC OBSTACLE AVOIDANCE
The APACHE 3 Pro comes standard with a millimeter-wave
obstacle avoidance system to detect obstructions in a wide 110° angle ahead.
When it encounters an obstacle, the USV autonomously charts a detour course
around it, effectively minimizing the potential risk of collision damage during
operation.
