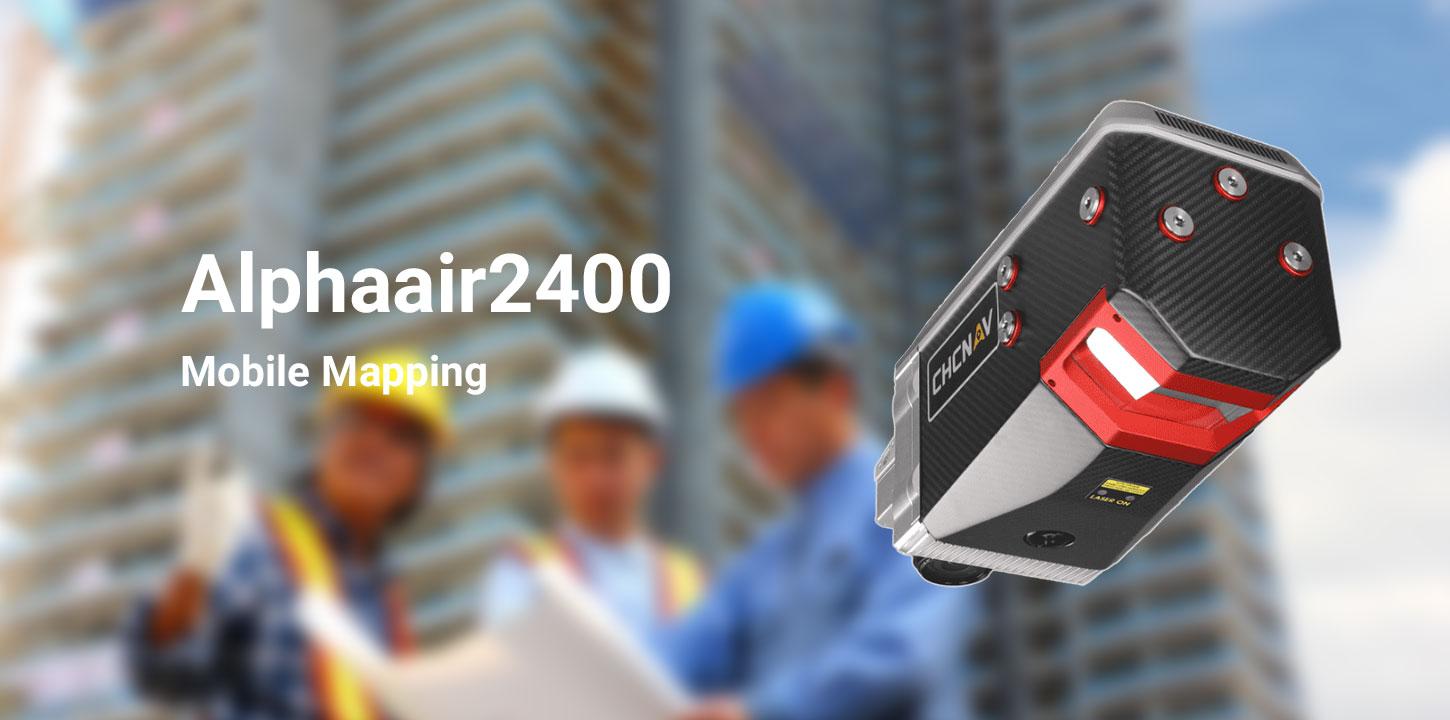

Alphaair 2400
The AlphaAir 2400 is an airborne laser scanner offering an
impressive combination of low weight, extended range, high accuracy, and
scanning speed for missions at up to 1400 m operating flight altitude. The
AA2400 can be easily installed on helicopters, airplanes, and various UAVs,
such as CHCNAV's BB4.

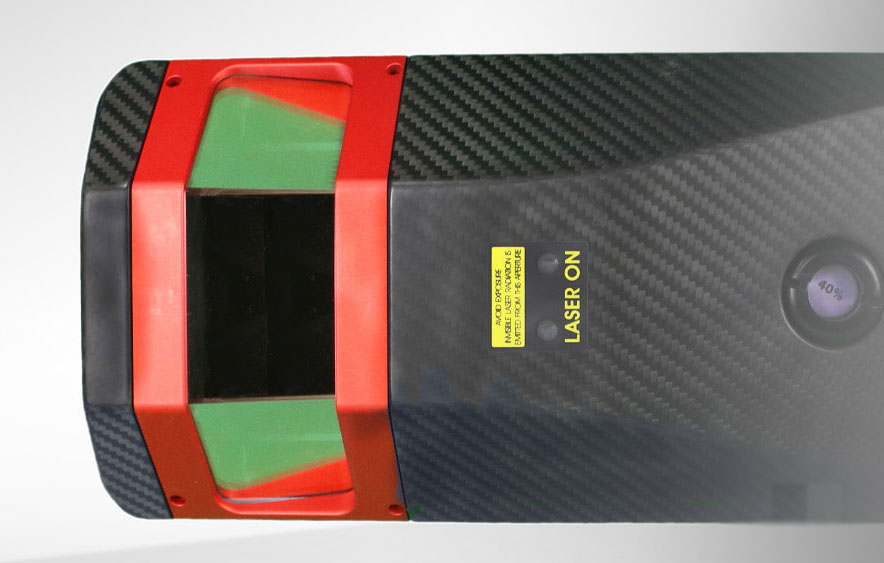

The AA2400 system integrates a Riegl’s VUX- 240 laser
scanner with a unique forward and backward-looking FOV designed to minimize
laser shadowing and provide geometry of complex vertical structures in a single
pass. In addition, the VUX-240 airborne laser scanner features a wide 75-degree
field of view, a high-speed data acquisition rate of up to 1.8 MHz, and a
scanning range of up to 2150 meters.
The industrial-grade CHCNAV’s GNSS and high-precision IMU
allow the AlphaAir 2400 to provide up to 2 cm accuracy, depending on the
scanning range.
DATA ACQUISITION AT HIGH ALTITUDE
High-end GNSS + INS combined with Riegl VUX-240
The AlphaAir2400 with the extended scanning range, allows
higher altitude missions of up to 1400 m, to survey large areas and avoid
potential collisions with high objects. The acquisition time is significantly
reduced, especially for large corridor mapping projects from helicopters or
aircraft. With its integrated VUX-240, the AA2400 features a wide 75-degree
field of view and a high-speed data acquisition rate of up to 1.8 MHz with a
scanning range of up to 2150 m at 80% albedo delivering 2 cm linear
accuracy.
