Alphaair 10
The AlphaAir 10 (or AA10) is an advanced aerial surveying
solution that seamlessly integrates LiDAR and RGB sensors to meet the needs of
professional UAV LiDAR mapping and drone photogrammetry.
Leveraging CHCNAV's cutting-edge LiDAR technology, the AA10
flawlessly integrates high-precision LiDAR, accurate GNSS positioning, IMU
orientation, and an industrial-grade full-frame orthophoto camera. Combined
with CHCNAV point cloud and image fusion modeling software, the AA10 provides a
survey-grade, efficient, and cost-effective approach to 3D data acquisition and
processing.

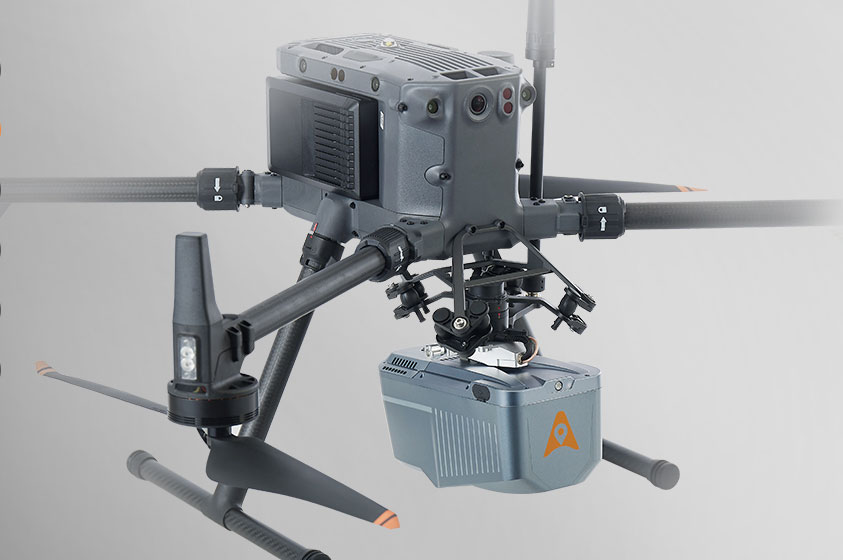

The AA10 Airborne LiDAR + RGB System accelerates accurate 3D
data collection within a single mission and simplifies the process of capturing
3D reality through a streamlined workflow.
PRECISION AND ADVANCED SCANNING CAPABILITIES
The AlphaAir 10’s (or AA10) high-precision navigation
algorithm, in conjunction with the CHCNAV scanner, provides 5 mm repeated range
accuracy and achieves exceptional absolute precision in the 2 to 5 cm range,
even in complex environments. With the capability of long-range measurements up
to 800 m, rapid scanning at 500,000 points per second, and a continuously
rotating mirror that enables scanning speeds of 250 scans per second, the AA10
enhances the detail of aerial mapping operations.
