A 50 & 30 Aerial Survey Cameras

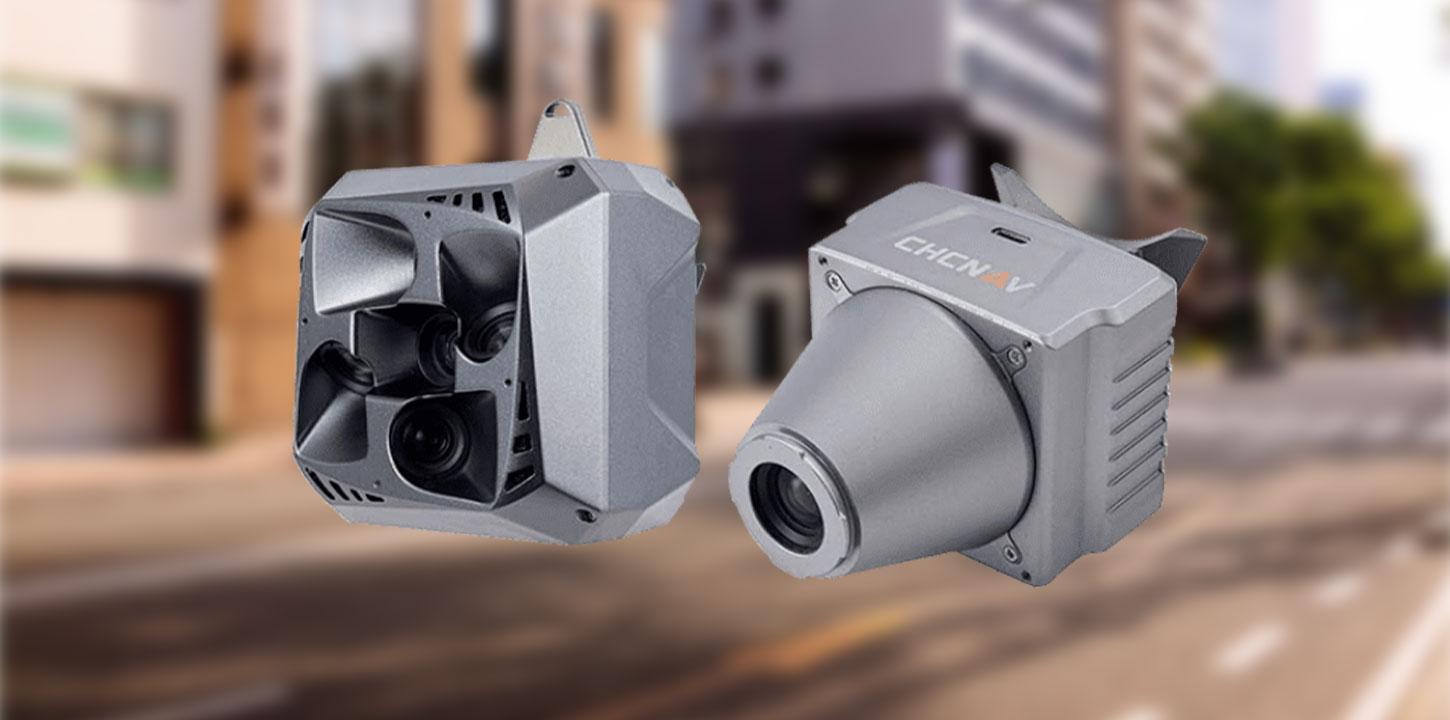

The CHCNAV's C5 and C30 are advanced cameras designed to
provide high-quality imaging solutions for photogrammetric applications and to
complement LiDAR survey data.
The C5 orthographic camera system features a full-frame,
fixed-focus camera with a larger sensor, allowing a larger area to be covered
per photo, resulting in more detailed and accurate orthophotos. The
low-distortion aerial survey lens built into the C5 camera increases the
accuracy of a survey to deliver reliable results.
The C30 is a professional, high-performance, lightweight
oblique photogrammetry system developed by CHCNAV. Its advanced design allows
it to capture clear and accurate oblique photos.
The C5 and C30 cameras are compatible with CHCNAV's BB4 mini
and P330 Pro UAVs, the DJI M300 RTK, and other fixed-wing and rotor UAV
platforms, providing a high degree of flexibility and versatility in
installation. They can also be mounted directly on CHCNAV's AlphaUni series
LiDARs.
LIGHTWEIGHT & SMALL SIZE
Optimal setup without weighing down the UAV
The C5 camera is a highly efficient and lightweight system
for aerial surveys, weighing only about 290 grams for increased flight
endurance. Its compact size of 75 x 63.5 x 102.5 mm allows easy integration
into UAVs. The C30 camera's weight is about 600 grams with a size of 110x108x85
mm, and it is the smallest and lightest industry-grade camera that can be
mounted on most UAVs. The advanced and lightweight design of both cameras
matches the mounting requirements of various UAVs available on the market and
ensures it does not impact the drone's performance or maneuverability.
